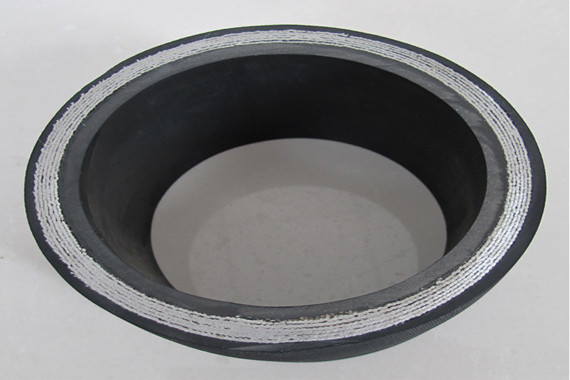

Application: Large inside diameter (2" to 6" i.d) high pressure flexible lines used for high pressure drilling fluids
Inner Tube: Oil resistant synthetic rubber for petroleum drilling fluids
Reinforcement: High strength steel cables
Cover: Ozone, petroleum and abrasion resistance synthetic rubberr
Working Temperature: -30°C to 120°C
| ID | 51mm / 2" | ||||||
| Leval | A | B | C | D | E | F | G |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 | 52/7500 | 70/10000 | 105/15000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 | 104/15000 | 104/15000 | 158/23000 |
| BEDNING RADIUS (mm) | 800 | 800 | 850 | 850 | 900 | 950 | 1000 |
| FITTING STYLE | TBG, LP, Union | ||||||
| ID | 64mm / 2-1/2" | ||||||
| Leval | A | B | C | D | E | F | G |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 | 52/7500 | 70/10000 | 105/15000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 | 104/15000 | 104/15000 | 158/23000 |
| BEDNING RADIUS (mm) | 900 | 900 | 1000 | 1000 | 1050 | 1100 | 1150 |
| FITTING STYLE | TBG, LP, Union | ||||||
| ID | 76mm / 3" | ||||||
| Leval | A | B | C | D | E | F | G |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 | 52/7500 | 70/10000 | 105/15000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 | 104/15000 | 104/15000 | 158/23000 |
| BEDNING RADIUS (mm) | 950 | 950 | 1050 | 1050 | 1100 | 1150 | 1150 |
| FITTING STYLE | TBG, LP, Union | ||||||
| ID | 89mm / 3-1/2" | ||||||
| Leval | A | B | C | D | E | F | G |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 | 52/7500 | 70/10000 | 105/15000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 | 104/15000 | 104/15000 | 158/23000 |
| BEDNING RADIUS (mm) | 1000 | 1000 | 1100 | 1100 | 1150 | 1150 | 1200 |
| FITTING STYLE | TBG, LP, Union | ||||||
| ID | 102mm / 4" | |||||
| Leval | A | B | C | D | E | F |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 | 52/7500 | 70/10000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 | 104/15000 | 104/15000 |
| BEDNING RADIUS (mm) | 1050 | 1050 | 1100 | 1100 | 1150 | 1200 |
| FITTING STYLE | TBG, LP, Union | |||||
| ID | 127mm / 5" | |||
| Leval | A | B | C | D |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 |
| BEDNING RADIUS (mm) | 1200 | 1200 | 1300 | 1300 |
| FITTING STYLE | LP, Union | |||
| ID | 152mm / 6" | |||
| Leval | A | B | C | D |
| WORKING PRESSURE (MPA / PSI) | 11/1500 | 14/2000 | 28/4000 | 35/5000 |
| TESTING PRESSURE (MPA / PSI) | 22/3000 | 28/4000 | 56/5000 | 70/10000 |
| BEDNING RADIUS (mm) | 1300 | 1300 | 1400 | 1400 |
| FITTING STYLE | LP, Union | |||
